FODS Trackout Control Mat

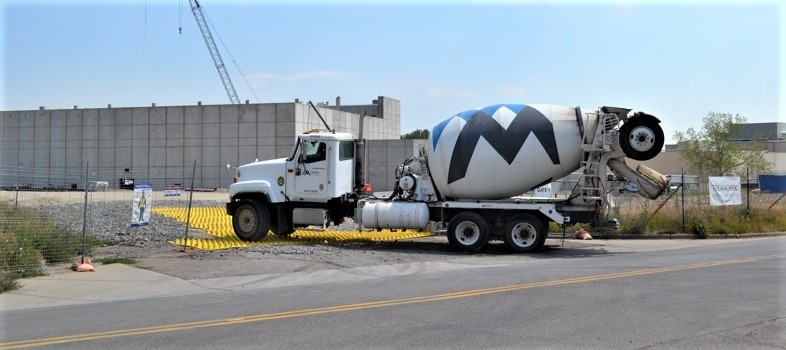

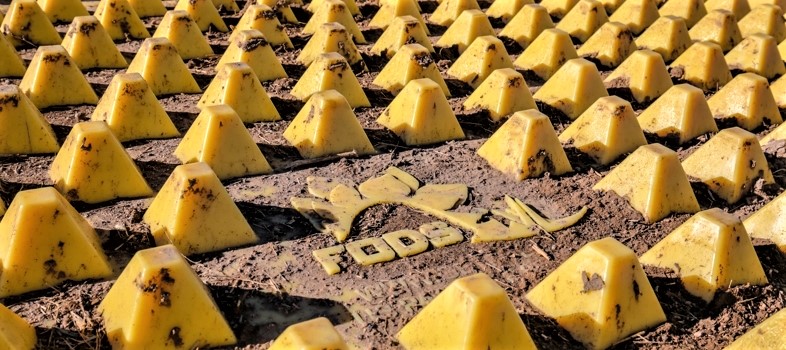

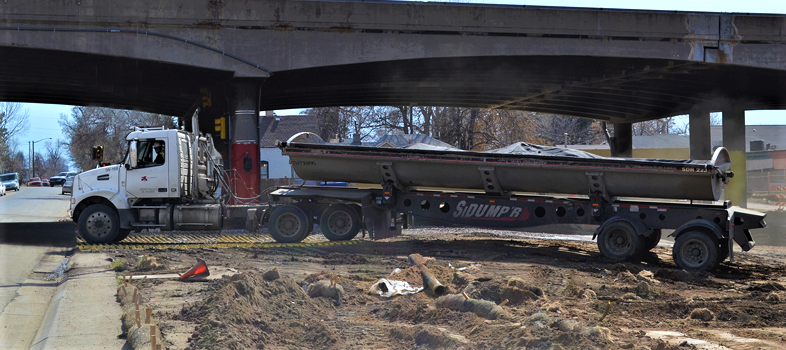

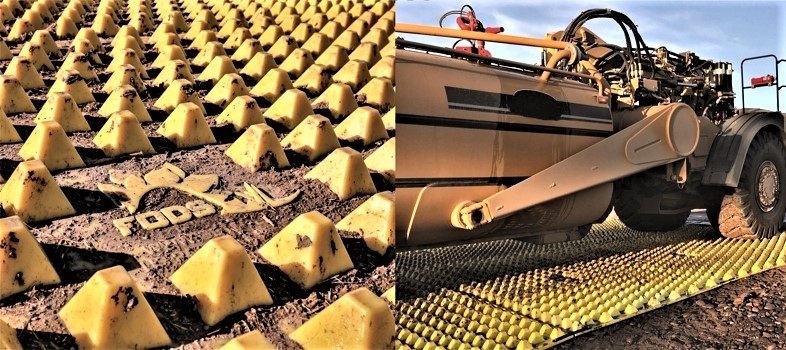

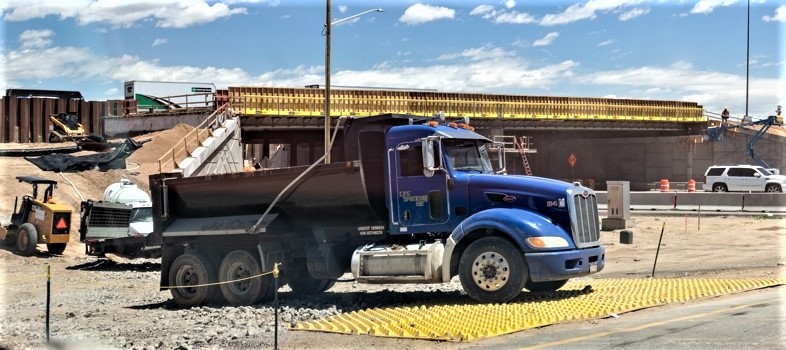

The FODS composite trackout control system is designed to be used as a temporary construction entrance that provides site access, while minimizing sediment leaving the site. The proprietary mat design works to effectively remove mud and sediment from your vehicle tires without damaging the tire or the ground’s surface. The mats are unidirectional and are meant to have the tapered and staggered pyramids in the direction of travel. Individual mats are connected together with hardware to form various configurations to fit your specific jobsite.
The ground is undisturbed while mats are being used, keeping soils in place from erosion. Each entrance installed with FODS will save 3 dump trucks worth of rock on initial install. Upon job completion, mats can be cleaned off onsite to prevent contaminates from being transported to other sites. FODS mats can be reused for many years and are 100% recyclable. Once lifespan is reached, FODS will not end up in landfills like rocks and similar methods.
-
- Creates an instant construction entrance over virtually any type of surface including asphalt, concrete, turf, sand, mud, and even or uneven ground
- Will not get clogged, be an eyesore, become embedded in soft ground
- Protects ground when placed on top of surface unlike conventional SCE’s (Stabilized Construction Entrance)
- Easily transported from site to site
- Creates an easily recognizable entrance for vehicles to see day or night
- Superior alternative to rocks, shakers, steel plates
- Supports weights up to 80 tons
- Chemically resistant to acids, oils, brake fluid, etc.
- Easily cleaned and put back in service within minutes
- Made in the USA
- Easily stored when not in use
- 15 times more abrasion resistant than steel
- Years of reusable performance
- 100% recyclable
-
